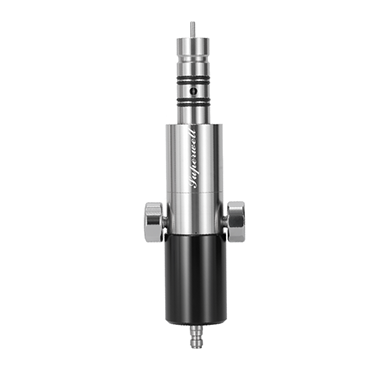

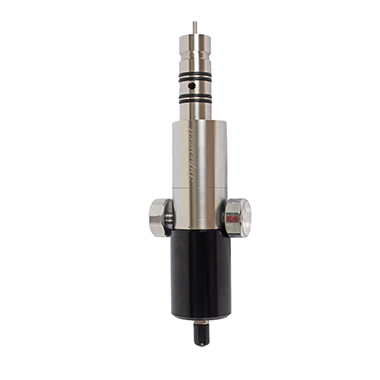

Needle Valve

Superwell needle valve is a new type of pressure reducing valve. It is made of stainless steel. It has small volume, large capacity of decompression chamber, stable excitation speed and low failure rate.

  • Volume 30CC
  • Pressure Regulation0~30Mpa
  • Texture of materialStainless steel
  • weight670
  • Valve nozzle specification
SHARE:
Product Details Testing Warning Shipment Contains

Product Details

The Airgun regulator with simple installation without adjustments on rifle, so everything can be returned back. All you need to do is unscrew the valve body from bottle (before screwing launch air). You need suitable stick and vise. Then screw regulator between the bottle and valve. Regulator with vented to atmosphere.

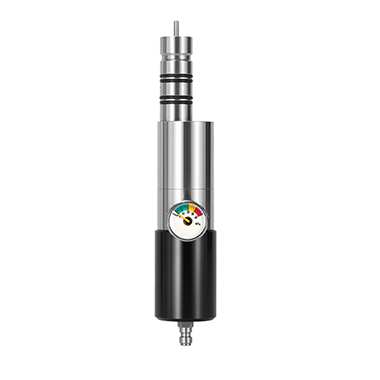

The position of the manometer and quick fill pin can be selected before pressurizing. To fulfill the need to purchase painball coupling , which is the same as marauder or other rifle. After installing the regulator NEVER fill the old way, through the valve. At fill always open the valve bottle slowly and do not fill too quickly. After installing the regulator NEVER fill throught by valve on the airgun, only by quick fill on regulator. For the filling you must purchase paintball coupling, which is the same as gun marauder or more.

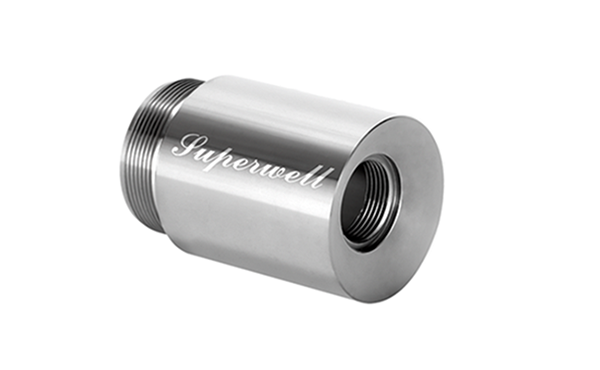

Large capacity pressure storage space

The superwell needle valve is equipped with a 34cc pressure memory, which is connected with the base through thread. The large capacity memory effectively increases the muzzle energy and the stability of the excitation.

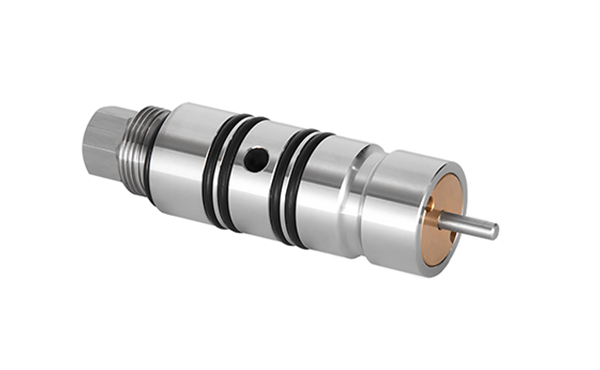

Valve body joint

The valve needle of superwell needle valve is made of high hardness die steel. It is ground, the valve needle will not deform and bend after tens of thousands of uses. The Huben team always consider for users. We offer a small gas cylinder for quick inspection of pressure regulation, which is convenient for you when you need to adjust the pressure.

CR-all
Net weight 670
Valve body --
Pressure regulating bolt --
Constant pressure bar --
Retaining ring --
Inflation nozzle --
Valve stem --
Disc spring 51cr4v mubea, Germany
Pressure gauge 25mm, thread: m8*1, maximum pressure range: 35MPa
Constant pressure range 5-15mpa

You must keep maximum cleanness in the entire pressure system (airtube and outer o-rings). Do not disassemble the regulator without previous approval, which will be awarded based on e-mail correspondence, where you provide the reason why it would be necessary to disassemble the regulator. In the case of breach this procedure you may damage the regulator function (fully assembled regulator is not simple and it is necessary to follow the correct procedure). For these reasons, the disassembly without previous consent,or failure exact installation procedure can not claim the warranty. Since regulator is not original part from the manufacturer’s, installation is on your own responsibility.

Testing

Graphs for Output pressure 130bars .22 weight 18.1grain

Result in air gun AirForce Condor

Warning

Shipment Contains

Product Fittings

  • Regulator
  • 1 piece Inner hexagon spanner
  • 1 piece spring
  • 4 pieces 11×1.5 o-rings
  • 14 pieces 6×1.5 o-rings
  • 2 pieces 22×2.5 o-rings
  • 4 pieces 18×2 o-rings
  • 10 pieces 18×1.5 o-rings
  • 4 pieces 20×1.9 o-rings

Product outer packaging

Tip
