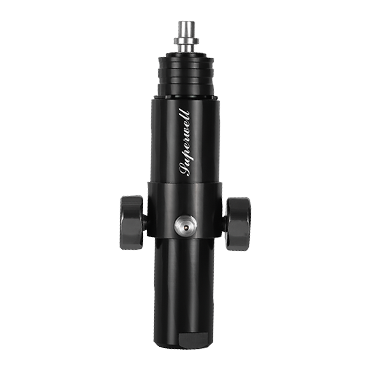

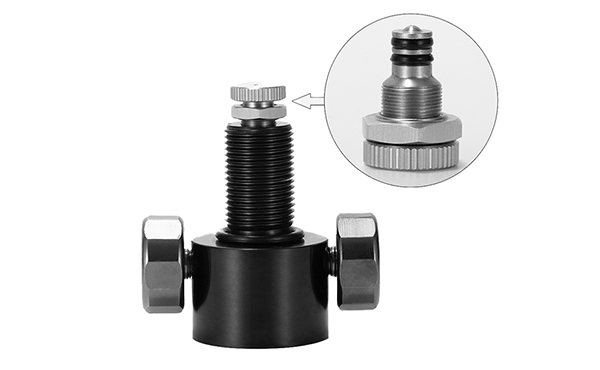

SuperWell valve

Superwell Valve is an entry-level product with a large number of users, low price, simple structure and low failure rate. What is the capacity of the gas chamber 23 CC, can save gas for you. Superwell valves meet ASTM standards and have a variety of safety features while maintaining accurate pressure regulation.

Volume 23CC
Pressure Regulation0~30Mpa
Texture of materialStainless steel
weight410
Valve nozzle specification5.5mm/5.0mm/4.5mm

SHARE：

Product Details Testing Warning Shipment Contains

Product Details

The Airgun regulator with simple installation without adjustments on rifle, so everything can be returned back. All you need to do is unscrew the valve body from bottle (before screwing launch air). You need suitable stick and vise. Then screw regulator between the bottle anvalve. Regulator with vented to atmosphere.

The position of the manometer and quick fill pin can be selected before pressurizing. To fulfill the need to purchase painball coupling , which is the same as marauder or other rifle. After installing the regulator NEVER fill the old way, through the valve. At fill always open the valve bottle slowly and do not fill too quickly. After installing the regulator NEVER fill throught by valve on the airgun, only by quick fill on regulator. For the filling you must purchase paintball coupling, which is the same as gun marauder or more.

: Good Sealability

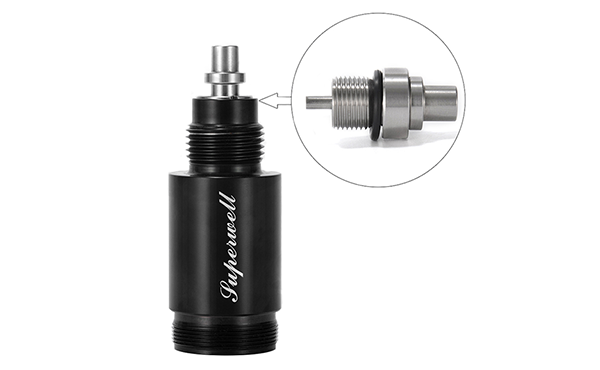

The whole body is made of stainless steel. Superwell is split. We have a sealing ring where stem A and air chamber come into contact. There is no gas leakage when the valve is opened.

: Stable Pressure Regulation

superwell's pressure regulation is very sensitive. We are a manufacturer made entirely in the United States, and these products provide us with benefits that foreign counterparts cannot achieve. One of the advantages is that you can adjust the pressure according to what you need, and you can achieve the adjustment accuracy of less than 5 bars.

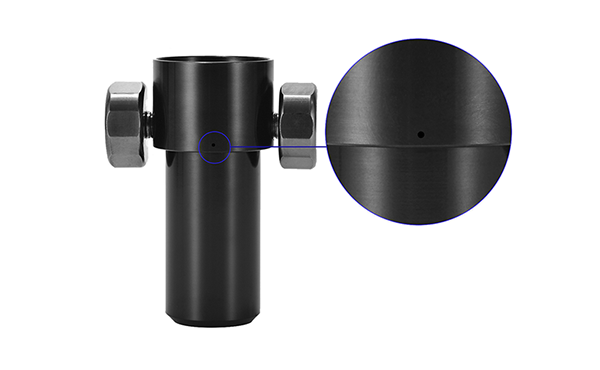

: the Breathing Hole

The valve's breathing hole is designed outside the valve. The hole is very small and usually only 0.5MM. There is no need to worry about external pollution entering. And the advantage is that the sealing ring inside the body fails, and the air chamber leaks from the breathing hole. You can easily tell where the failure is.

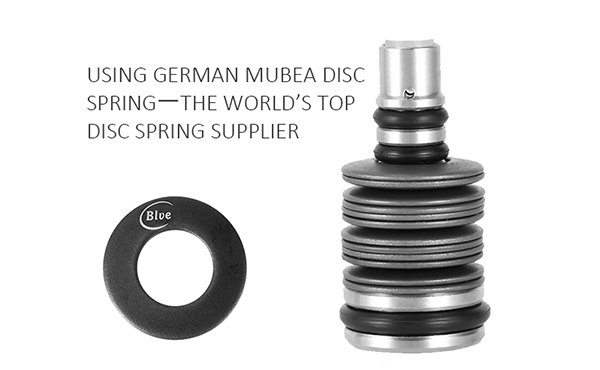

: Precision Disc Spring

Valve constant pressure mechanism uses precision disc spring, scientific stacking, continuous pressure recovery time is less than 0.3 seconds. Velocity fluctuation less than 5Bar/min.What is the decompression capacity of the valve 33 CC, also suitable for 0.6-1.2G projectiles, its speed is 270 m/s, which can effectively save gas and obtain more excitation times. The pressure recovery time from valve opening to closing is 0.8 seconds, which can satisfy fast continuous excitation. Velocity fluctuates by 3 m/s.

CR-all
Net weight	410
Valve body	SUS304, rear thread m18*1.5; Front thread inch 7/8-14 (standard configuration)
Pressure regulating bolt	SUS304, external thread: m9*0.8
Constant pressure bar	SUS304, diameter 19mm
Retaining ring	outer diameter 25mm, internal thread 4/8-14
Inflation nozzle	SUS304, thread m8*1
Valve stem	POM
Disc spring	51cr4v mubea, Germany
Pressure gauge	25mm, thread: m8*1, maximum pressure range: 35MPa
Constant pressure range	5-15mpa

The tread adapter of cricket valve is made of stainless steel,which is the most precise part of whole valve and it will malfunction if there is an error. So we use a five-axis CNC to make it. To ensure the correctness of its size. At the same time, the roughness of the inner hole is also very important. You can imagine that the piston constantly reciprocates the inner wall of the valve under great pressure. If it is not handled properly, it will malfunction soon. Your valve will not be available. However,our products will not have such problems. Every product is processed by mirror surface treatment and filled with flame retardant grease. Friction is minimized during movement.

The stop ring is a creative part. Our team invented it in 2009 to solve the problem that the original fixing ring of air force air gun will fall off during use due to design defects. All our cricket products will be equipped with it. You don't need to buy it separately.

We offer a variety of replaceable Air Fill Nipple to meet the different requirements of the initial speed of muzzle for different players. We offer tools for replacing the Air Fill Nipple for free, you can use it when you need it.

Testing

Graphs for Output pressure 135bar .22 weight 18.1grain

Result in air gun AirForce Condor

Warning

You must keep maximum cleanness in the entire pressure system (airtube and outer o-rings). Do not disassemble the regulator without previous approval, which will be awarded based on e-mail correspondence, where you provide the reason why it would be necessary to disassemble the regulator. In the case of breach this procedure you may damage the regulator function (fully assembled regulator is not simple and it is necessary to follow the correct procedure). For these reasons, the disassembly without previous consent,or failure exact installation procedure can not claim the warranty. Since regulator is not original part from the manufacturer’s, installation is on your own responsibility.

Shipment Contains

Product Fittings

Regulator
2 piece Nylon plug
1 piece spring for Air Fill Nipple
1 piece aluminium bar for removing air fill nipple
4 pieces 8×2 o-rings for inlet fill nipple
2 pieces 19×2 o-rings for Constant pressure bar
2 pieces 22×2.5 o-rings for thread adapter
2 pieces 26×1.9 o-rings for thread adapter

Product outer packaging
